Sony EVI-D30/D31
Pan/Tilt/Zoom Cameras
120 VAC Power Supply

The Sony EVI-D30/D31 Pan/Tilt/Zoom camera’s nominal input voltage is 13.5 VDC at approximately 800 mA. The allowable DC voltage range of these cameras is 12 VDC to 14 VDC.

The EVI-D30 comes with a United States standard 120 VAC power supply while the EVI-D31 comes with a European standard 220 VAC power supply.

To use the EVI-D31 in the United States you must either have a 220 VAC power outlet near the camera or find an AC-to-DC adapter capable of supplying the correct voltage and current to the camera. This document provides you with information on obtaining a suitable 120 VAC AC-to-DC adapter for the EVI-D31 or a replacement adapter for the EVI-D30.

You may purchase the Sony AC-EV2 AC Adapter directly from Sony, but it is quite expensive.

Sony AC-EV2, US Standard Power Supply

Model No.:
13.5V DC/1000mA:
Rated Input:
Rated Output:
Dimensions:
Weight:
AC Line Cord:
DC Output Cord:
Color:
Class 2 Power Supply
Part No. 1-473-789-11:
AC-EV2
AC-to-DC Adapter
120V AC, 60 Hz, 25 Watts
13.5V DC, 1A (1000mA)
2 1/2 x 3 3/4 x 2 in. (w/h/d)
2 lbs.
2 conductor polarized plug
6 feet, 2 conductor
Black

$124.66

Sony AC-EV2 Power Adapter
Sony AC-EV2 Power Adapter



Canon AD-300 Power Adapter
Suitable for use with the Sony EVI-D30/D31 Cameras

Model No.:
13.5V DC/1000mA:
Rated Input:
Rated Output:
Dimensions:
Weight:
AC Line Cord:
DC Output Cord:
Color:
Class 2 Power Supply
Part No. K30081:
AC-300
AC-to-DC Adapter
120V AC, 60 Hz, 25 Watts
13.5V DC, 1A (1000mA)
2 1/2 x 3 3/4 x 2 in. (w/h/d)
2 lbs.
2 conductor polarized plug
6 feet, 2 conductor
Black

Approximately $90.00, Usually available on eBay for much less.

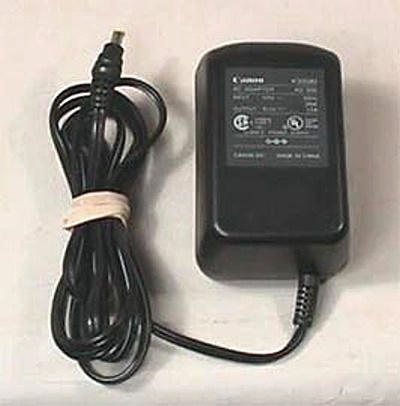

Canon AD-300 Power Adapter
Canon AD-300 Power Adapter



Apple M3365 Power Adapter
Suitable for use with the Sony EVI-D30/D31 Cameras

Model No.:
13.5V DC/1000mA:
Rated Input:
Rated Output:
Dimensions:
Weight:
AC Line Cord:
DC Output Cord:
Color:
Class 2 Power Supply

M3365
AC-to-DC Adapter
120V AC, 60 Hz, 28 Watts
13.5V DC, 1A (1000mA)
2 1/2 x 4 x 2 in. (w/h/d)
2 lbs.
6 feet, 2 conductor plug
6 feet, 2 conductor
Black

Usually available on eBay

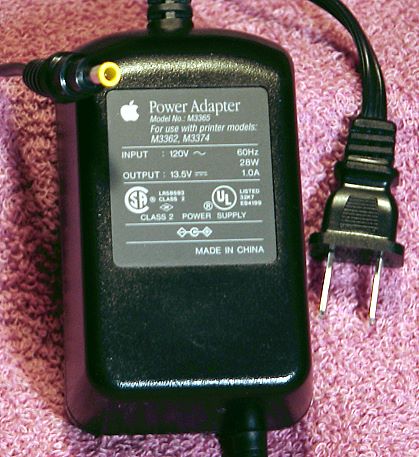

Apple M3365 Power Adapter
Apple M3365 Power Adapter



Radio Shack AC-to-DC Adapter
Suitable for use with the Sony EVI-D30/D31 Cameras

Model No.:
13.5/30V DC/1000mA:
Rated Input:
Rated Output:
Dimensions:
Weight:
AC Line Cord:
DC Output Cord:
Color:
Class 2 Power Supply
Catalog No. 273-1668 :
273-1668
AC-to-DC Adapter
120V AC, 60 Hz, 40 Watts
13.5/30V DC, 1A (1000mA)
3 x 2 1/2 x 4 1/2 in. (w/h/d)
2 lbs.
6 feet, 2 conductor polarized
6 feet, 2 conductor Adaptaplug®
Beige (off white)

$21.99

This adapter uses Radio Shack’s Adaptaplug® connector to connect to the device to be powered. Radio Shack sells many Adaptaplug® adapters. You are entitled to one free Adaptaplug® connector when you buy any Radio Shack Adaptaplug® AC-to-DC Adapter.

The correct Adaptaplug® connector to use with the EVI-D30/D31 cameras is Catalog No. 273-1707.

Its dimensions are OD 5.50mm, ID 3.3mm, Pin 0.9mm.

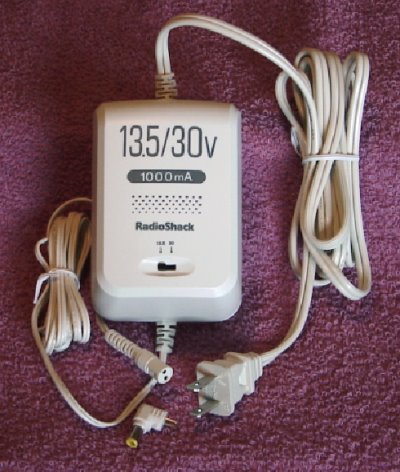

Radio Shack 273-1668 AC-to-DC Adapter
Radio Shack 273-1668 Power Supply

Closeup of the 273-1707 Adaptaplug®
Radio Shack 273-1707 Adaptaplug®

eBay Sellers occasionally have Sony, Apple or Canon adapters in liquidation inventory for 50-75% off retail.

Search eBay for Sony AC-EV2 Power Supplies

Search eBay for Apple M3365 Power Supplies

Search eBay for Canon AD-300 Power Supplies
